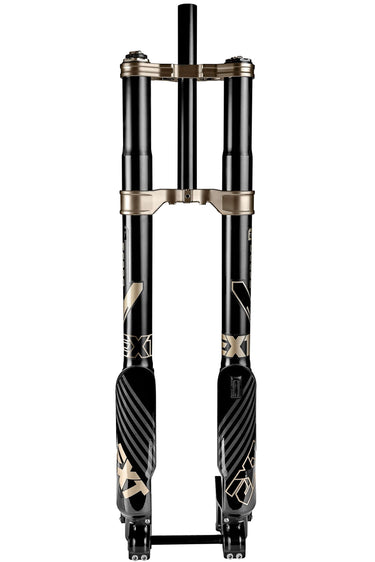

Ferro USD 36 Front Fork

Features:

• ∅36mm hard chromed steel stanchions (heat treated 42CrMo4) with Superfinish surface treatment
• Dedicated triple clamp design uppers (7000 aluminium series)
• HS3 system: twin positive air system ¬+ 1 large negative self-balancing air chamber, allows to get an optimum level of support through all the travel
• Chromed steel air spring shaft with Superfinish surface treatment
• High-flow 3-way adjustable cartridge with independent High/Low speed compression and rebound adjustments
• External pressure air release system on both legs
• Twin hexagonal floating axle, boost compatible
• ∅20mm Air spring and cartridge radial guide system with bespoke aeronautical seals (minimize friction on side loads)
• Large piston design for best damping control and separate IFP/coil energized compression valve
• No cavitation and low hysteresis
• Self-hydraulic cartridge bleeding
• Dedicated Mobile Sliding DU guiding system with super-long static overlap (for maximum guidance and best torsional rigidity). (CGB Continuously Guided Bushing system, increase stiffness)

Specifications:

• 205 mm of travel and 44 mm offset
• 200 mm post mount brake
• Weight 4000gr
• Pressure release one way valves on both legs

**Requires a 5mm front wheel boost spacer, you can add one below if you do not already have one.**
